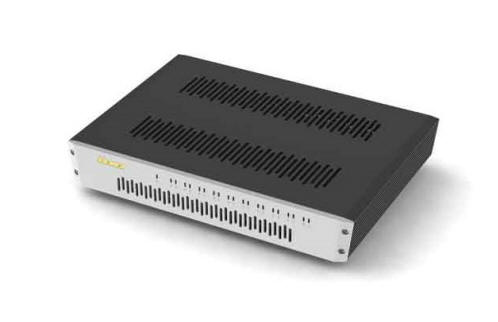

SWHITCH  HI-END   sNH-10G





SOtM sNH-10G                                                  Listino ufficiale €. 1.080,00

SOtM sNH-10G+ sCLK-EX 1                              Listino ufficiale €. 2.015,00

SOtM sNH-10G+ sCLK-EX 1+ connettore Master Clock Listino ufficiale €. 2.290,00




Specification User interface Operating indicator LED x1 Link indicator LED x10 Active indicator Dual Color LED x10 Network  Support Standard IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3u 100Base-FX 100Mbps over fiber optic IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-T 1 Gbps over fiber optic IEEE 802.3x flow control and backpressure  Full-duplex and half-duplex operation Supports 9216 byte jumbo packet length ConnectorRJ-45 ports x 8 SFP ports x 2 Optional audio grade clocksCLK-EX with 10MHz Master clock input DC power input Input voltage : 6.5Vdc 8.5Vdc, 9Vdc, 12Vdc Voltage tolerance: ±10% Input current : 2A max 5.5mm OD, 2.1mm ID adaptor jack Operating environment Operating temperature : +10 ~ +30℃ Storage temperature : 0 ~ +40℃ Operating & storage humidity : 10% ~ 90%
